csad::BaseObject Class Reference

BaseObject - the main interface objects. More...

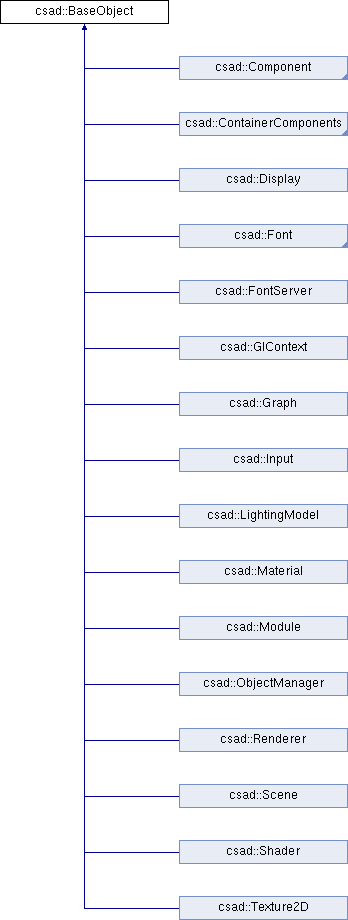

Inheritance diagram for csad::BaseObject:

Public Types
enum	BASE {   ANY = 0x00000000, EVENT = 0x00000001, TYPE = 0x00000002, CONTAINER = 0x00000003,   MANAGER_COUNT = 0x00000004, MANAGER = 0x00000005, WRITE = 0x00000006, READ = 0x00000007,   SELECT = 0x00000008, RUN = 0x00000009, LIST = 0x0000000A, LIST_COUNT = 0x0000000B,   NAME = 0x0000000C, CHILD_NAME = 0x0000000D }
	the basic format of the interface More...

Public Member Functions
_FORCEINLINE bool	isContainer ()
	returns true if the object is a container.
_FORCEINLINE ParametersList *	read (ParametersList *data)
	read attributes object.
virtual void *	set (unsigned _int32, void *)=0
	used for any interface commands.
_FORCEINLINE void *	type ()
	the output pointer to the typeid() of the class.
_FORCEINLINE void	write (ParametersList *data)
	record attributes of the object.

Detailed Description

BaseObject - the main interface objects.

The basic template for description in the header:

  class SomeClass:public csad::Component {
     public:
     ...
         void * set(unsinged _int32 id,void * params);

      TYPEINFO_H
     private:
     ...
  }

The basic template for describing the implementation:

  void * SomeClass::set(unsinged _int32 id,void * params)
  {
     if (id==csad::BaseObject::TYPE) return SomeClassL::t();
     return 0;
  }

  TYPEINFO(SomeClass);

See Also

csad: core

Member Enumeration Documentation

enum csad::BaseObject::BASE

the basic format of the interface

Enumerator
ANY	specific identifier
EVENT	processing messages
TYPE	the output pointer to the typeid() of the class;
CONTAINER	returns a pointer to itself if the object is a container.
MANAGER_COUNT	returns the number of managers.
MANAGER	returns the specified Manager
WRITE	record attributes of the object, the input is the list of parameters ObjectParameters
READ	read attributes object, the input is empty list of parameters ObjectParameters filled and fed to the output
SELECT	selection event has its peculiarities
RUN	to execute the method
LIST	returns the list item
LIST_COUNT	number of items
NAME	returns the name if it is.
CHILD_NAME	returns the name if it is.
