csad::ContainerComponents Class Reference

ContainerComponents - the container class components. More...

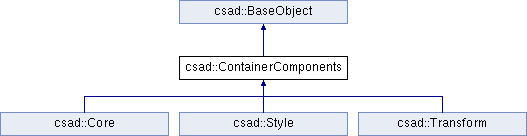

Inheritance diagram for csad::ContainerComponents:
csad::BaseObject csad::Core csad::Style csad::Transform

Public Member Functions

template<typename T >
_FORCEINLINE T * addComponent ()
 Adds the component of the specified type in the container if this component already exists, returns available.

_FORCEINLINE ComponentaddComponent (char *name)

_FORCEINLINE ComponentaddComponent (const char *name)

_FORCEINLINE iterator begin ()
 The first element of the list of components.

template<typename T >
_FORCEINLINE void deleteComponent ()
 Detaches the component from the container and remove the component.

_FORCEINLINE iterator end ()
 The final element of the list component.

_FORCEINLINE void freeComponents ()
 detaches and removes components

template<typename T >
_FORCEINLINE T * getComponent ()
 Returns the component of the given type, if it is not in a container returns 0.

_FORCEINLINE ComponentgetComponent (void *t)
 Returns the component of the given type, if it is not in a container returns 0.

_FORCEINLINE ComponentgetComponent (char *name)

_FORCEINLINE ComponentgetComponent (const char *name)

_FORCEINLINE ComponentsMaplist ()
 Returns list of Components.

virtual CSAD_API void quit ()
 Transfers control to the nested components quit calling each of them.

template<typename T >
_FORCEINLINE void removeComponent ()
 Detaches the component from a container.

CSAD_API void * set (unsigned _int32, void *)
 used for any interface commands.

CSAD_API void * setComponents (unsigned int id, void *param)

virtual CSAD_API void start ()
 Transfers control to the nested components start calling each of them.

virtual CSAD_API void update ()
 Transfers control to the nested components causing update each of them.

- Public Member Functions inherited from csad::BaseObject
_FORCEINLINE bool isContainer ()
 returns true if the object is a container.

_FORCEINLINE ParametersListread (ParametersList *data)
 read attributes object.

_FORCEINLINE void * type ()
 the output pointer to the typeid() of the class.

_FORCEINLINE void write (ParametersList *data)
 record attributes of the object.


Static Public Member Functions

static CSAD_API int regClass (const char *name, const void *info, tfSTDCALL_p_FUNC_p fun)


Additional Inherited Members

- Public Types inherited from csad::BaseObject
enum  BASE {
  ANY = 0x00000000, EVENT = 0x00000001, TYPE = 0x00000002, CONTAINER = 0x00000003,
  MANAGER_COUNT = 0x00000004, MANAGER = 0x00000005, WRITE = 0x00000006, READ = 0x00000007,
  SELECT = 0x00000008, RUN = 0x00000009, LIST = 0x0000000A, LIST_COUNT = 0x0000000B,
  NAME = 0x0000000C, CHILD_NAME = 0x0000000D
}
 the basic format of the interface More...


Detailed Description

ContainerComponents - the container class components.

The container has a map of pointers to objects components.

See Also
csad: core

Member Function Documentation

_FORCEINLINE Component* csad::ContainerComponents::addComponent ( char *  name)
inline

Create a component class name and adds it to the container.

Parameters
name- the name of the component class.
Returns
a new component, or available in the container
_FORCEINLINE Component* csad::ContainerComponents::addComponent ( const char *  name)
inline

Creates a component class name and add it to the container, if the component is already contained in the container is returned to the available component

Parameters
name- the name of the component class.
Returns
a new component, or available in the container
_FORCEINLINE Component* csad::ContainerComponents::getComponent ( char *  name)
inline

Returns the component of the specified class.

Parameters
name- the name of the component class.
Returns
the component is available in a container, or null if it is not.
_FORCEINLINE Component* csad::ContainerComponents::getComponent ( const char *  name)
inline

Returns the component of the specified class.

Parameters
name- the name of the component class.
Returns
the component is available in a container, or null if it is not.
static CSAD_API int csad::ContainerComponents::regClass ( const char *  name,
const void *  info,
tfSTDCALL_p_FUNC_p  fun
)
static

Registers the component class

Parameters
name- the class name of the component
info- the class identifier
fun- the class identifier
CSAD_API void* csad::ContainerComponents::setComponents ( unsigned int  id,
void *  param
)

Passes the components parameters from the BaseObject::set.

Parameters
id- id BaseObject::Base
param- a pointer to a structure parameters.
Returns
depends on id.
