csad::SGButton Class Reference

SGButton - component, which is the controller buttons, defines the characteristics of the image and manages events. More...

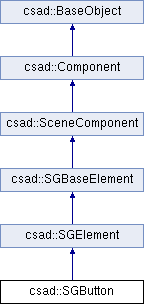

Inheritance diagram for csad::SGButton:

Public Member Functions
CSAD_API void *	set (unsigned _int32, void *)
	used for any interface commands.
Public Member Functions inherited from csad::SGElement
CSAD_API const char *	getText ()
	returns the text of the element (components Text3D)
_FORCEINLINE bool	isActive ()
	Returns true if the installed state of the Active.
_FORCEINLINE bool	isClick ()
	Returns true if set status Click.
_FORCEINLINE bool	isDisable ()
	Returns true if the installed condition Disable.
_FORCEINLINE bool	isNormal ()
	Returns true if installed, the Normal state.
_FORCEINLINE bool	isSet ()
	Returns true if set check button.
CSAD_API void *	set (unsigned _int32, void *)
	used for any interface commands.
CSAD_API SGElement &	setReceiver (char *path)
CSAD_API SGElement &	setReceiver (BaseObject *obj)
CSAD_API SGElement &	setSize (vector3f &size)
	Specifies the size of the button.
CSAD_API SGElement &	setStyle (char *name)
	Sets the style named.
CSAD_API SGElement &	setStyle (Style *style)
	Specifies the style object.
CSAD_API SGElement &	setText (char *text)
	Specifies the text of the button.
CSAD_API bool	setUseStyle (char *styleType)
	Тип стиля, может быть выбран SGStyle, SGButtonStyle, SGElementStyle.
CSAD_API SGElement &	setVisible (bool val)
	Sets the visibility of all the elements of a button.
CSAD_API void	start ()
	This event is fired after the program start.
CSAD_API void	update ()
	This event is fired before rendering environment container component.

Additional Inherited Members
Public Types inherited from csad::SGBaseElement
enum	State {   Normal = 0x0, Active = 0x1, Click = 0x2, Disable = 0x3,   SGE_Set = 0x100 , SGE_SetButton = 0x0000, SGE_SetSelect = 0x1000, SGE_SetSwitch = 0x2000,   SGE_SetOpen = 0x3000, SGE_Opened = 0x10000 , SGE_Vertical = 0x00000, SGE_Horisontal = 0x80000,   SGE_End = 0x100000 }
Static Public Member Functions inherited from csad::Component
static CSAD_API int	regClass (const char *name, const void *info, tfSTDCALL_p_FUNC_p fun)

Detailed Description

SGButton - component, which is the controller buttons, defines the characteristics of the image and manages events.

To handle events keys, you must install a handler recipient using the SGButton::setReceiver. Event processing is performed in the method BaseObject::set when the parameter id==BaseObject::SELECT, and the second parameter contains a pointer to the component type SGButton. This can be any object of a class inherited from the BaseObject class or his descendants.

For description in the configuration:

  <Scene name="myKeyScene">
    <Transform name="name of the button" pos="0 0 0" scale="0.1 0.1 0.1">
      <SGButton size="0.1 0.05 0" text="key text" style="buttonstyle"/>
    </Transform>
  </Scene>

See Also

csad: gui, Style, TextStyle, SGButtonStyle, BaseObject
